Crane Bridge Techinical Data of a Single / Double Girder EOT crane

Post new topicReply to topicThank Post www.www.bussiapp.com Forum Index->SEFI General Discussion
View previous topic::View next topic
Author Message
someshwar ganti
General Sponsor
General Sponsor


Joined: 06 Feb 2010
Posts: 77

PostPosted: Sat Apr 15, 2023 6:00 amPost subject: Crane Bridge Techinical Data of a Single / Double Girder EOT crane Reply with quote

Hello everybody

i need the Crane Bridge self weight, Crab weight based on lift capacity and Span of the Crane Bridge.

这是需要设计whi的吊车梁ch this bridge will run.

BTW I will be designing the crane girder using Prabhakar Sir's Excel Design sheet,

There are few companies giving the data sheet but not to a designer's satisfication

I am also attaching such sheet by Moris Crane company, if anyone has better data please upload on this site



Warning: Make sure you scan the downloaded attachment with updated antivirus tools before opening them. They may contain viruses.
Use online scanners
here and here to upload downloaded attachment to check for safety.
MORIS CRANE Brochure_Cranes.pdf
Description:
EOT crane technical data

Download
Filename: MORIS CRANE Brochure_Cranes.pdf
Filesize: 1.7 MB
Downloaded: 40 Time(s)

Back to top
View user's profileSend private message
Trilochan S.Dholakia
SEFI Member
SEFI Member


Joined: 12 Oct 2011
Posts: 8

PostPosted: Sat Apr 15, 2023 2:30 pmPost subject: Crane Bridge Techinical Data of a Single / Double Girder EOT crane Reply with quote

Best is to get quote of crane supplier. Or from crane supplier one can get exact details for better use. Optional is Steel Designer’s Manual in earlier days had the best reference chart.
Gantry Design has to satisfy needs from manufacturer to requirement such as :
1. Max. Load lift capacity : 20 T
2. Crane Span :
3. Weight of crab: 1/5 of lifting
capacity plus 5 kN.
4. Weight of crane bridge : 10 to
12 MT. (Single / double girder)
5. Spacing of wheel : 1.2 m
6. End clearance from crane : 600
mm.
7. Min. Head room from rail top :
4500 mm.
8. Rail type and weight : 0.5 kN/m
Height of crane rail : 100 mm
9. Min. Hook approach : 600 mm 10. Weight of cables :
For quick reference only:
Design of Gantry Crane Girders | BS 5950
structville.com



Hope this finds you as useful.
T. S. Dholakia

Posted via Email

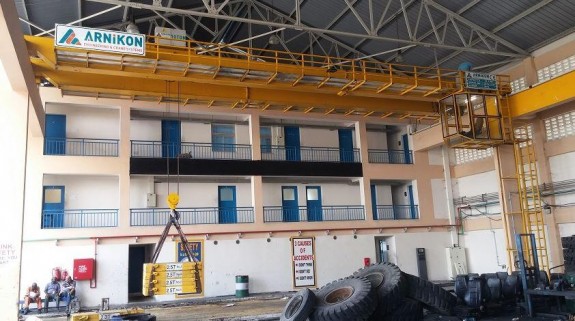

Description:
Filesize: 87.71 KB
Viewed: 12 Time(s)



Back to top
View user's profileSend private message
spsvasan
...
...


Joined: 18 Dec 2008
Posts: 374

PostPosted: Mon Apr 17, 2023 2:47 amPost subject: Re: Crane Bridge Techinical Data of a Single / Double Girder EOT crane Reply with quote

someshwar ganti wrote:
Hello everybody

i need the Crane Bridge self weight, Crab weight based on lift capacity and Span of the Crane Bridge.

这是需要设计whi的吊车梁ch this bridge will run.

BTW I will be designing the crane girder using Prabhakar Sir's Excel Design sheet,

There are few companies giving the data sheet but not to a designer's satisfication

I am also attaching such sheet by Moris Crane company, if anyone has better data please upload on this site



The crane bridge self weight and crab weight varies from manufacturer to manufacturer.

It is better to fix the crane vendor and then use the values given by them.

莫里斯是一个很好的机构。你可以采用高10%forces and carryout the design. This will generally result in a proper design. But, after the crane vendor has been fixed, the design shall be checked with the loads given by the vendor

S.P.Srinivasan
Back to top
View user's profileSend private message
someshwar ganti
General Sponsor
General Sponsor


Joined: 06 Feb 2010
Posts: 77

PostPosted: Wed Apr 19, 2023 6:44 amPost subject: Re: Crane Bridge Techinical Data of a Single / Double Girder EOT crane Reply with quote

spsvasan wrote:
someshwar ganti wrote:
Hello everybody

i need the Crane Bridge self weight, Crab weight based on lift capacity and Span of the Crane Bridge.

这是需要设计whi的吊车梁ch this bridge will run.

BTW I will be designing the crane girder using Prabhakar Sir's Excel Design sheet,

There are few companies giving the data sheet but not to a designer's satisfication

I am also attaching such sheet by Moris Crane company, if anyone has better data please upload on this site



The crane bridge self weight and crab weight varies from manufacturer to manufacturer.

It is better to fix the crane vendor and then use the values given by them.

莫里斯是一个很好的机构。你可以采用高10%forces and carryout the design. This will generally result in a proper design. But, after the crane vendor has been fixed, the design shall be checked with the loads given by the vendor

S.P.Srinivasan


Contacting the Crane Manufacturer is the issue in India, Most these guys do not have any such table they go by rule of thumb and

honestly I doubt most of them ever Design what they sell, they just do it based on experience, I have spoken to many manufactures they just do not have any science behind their answers, just from experience,

We need authentic calculations, but 80% of them do not know the analysis & design concept at all JUST RAW AND BRUT force / EXPERIENCE
